SET OF FOUR ROUND U-BOLTS w/hardware
3.25″ axle diameter x 7″ long, axle ABOVE springs
Round U-bolts, zinc plated Grade 5 material, 1/2″ diameter, kits include 4 U-bolts, with nuts and washers.
NOTE: While you can use your vehicle’s stock ubolts with CalTracs, Calvert Racing’s 1/2″ diameter u-bolts is an upgrade as most stock applications come withย 7/16″ diameter u-bolts. We recommend torqueing the u-bolts to 65-70 foot lbs. After running the vehicle down the track a few times, we also recommending checking the u-bolts and readjusting if necessary. Please see the FAQ page on this website or CalTracs Installation Guide for more info.
(UR275x70 shown)
If you are unsure which part number will best fit your vehicle, please call Calvert Racing at 661-728-9600, Monday – Friday, 8:00am-4:30pm, PST.
$35.00
Out of stock
Out of stock
SOLD SEPARATELY
1962-1967 Chevrolet Nova
1967-1969 Chevrolet Camaro
1967-1969 Pontiac Firebird

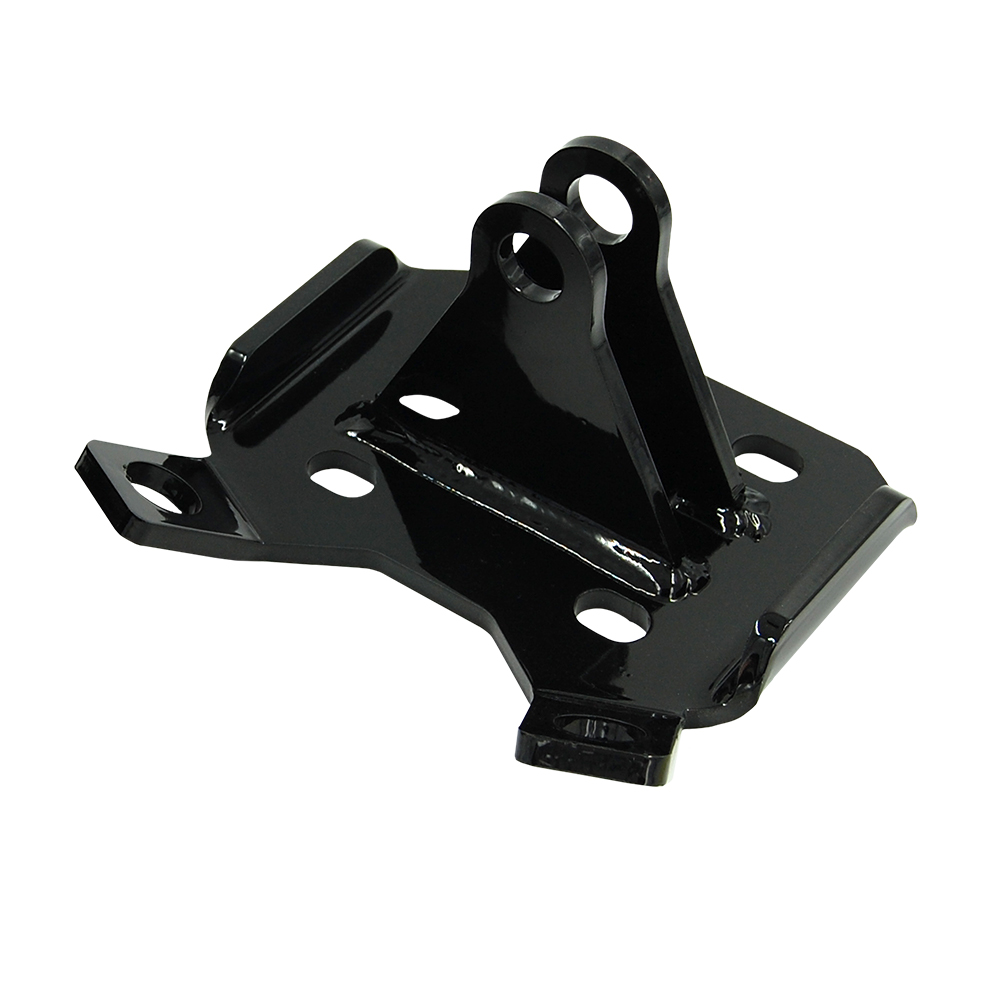

Rear Spring Mount for CalTracs assembly. Designed for 90 degree tabs.
Made with 5/16″ mild steel to withstand the correct torque on your u-bolts and keep your rear-end from moving. Black gloss powder coated for extra durability.
MOUNT FITS BOTH LEFT AND RIGHT SIDE.
80 degree rear spring mount also available.
SOLD SEPARATELY
RIGHT Rear Spring Mount for CalTracs assembly. Designed for Chrysler vehicles.
Made with 5/16″ mild steel to withstand the correct torque on your u-bolts and keep your rear-end from moving. Black gloss powder coated for extra durability.
LEFT Rear Spring Mount available, part # MT-3
SET OF TWO
1.25″ diameter x 29″ force transfer links. Measure end to end. Can be lengthened 3/4″ each end by turning once installed.
Made with 4130 Chromoly, the CalTracs preload link is light weight but strong, ensuring maximum leverage and minimum flex. Gloss black powder coated for added durability.
SET OF FOUR RACING PROFILE PLATES
Designed for RACING TRUCKS. Two Hole, Berlin style plates for center spring eye. Made with 5/16″ Mild Steel, black powder coated for added durability. 5″ long, measured from center of spring eye to bottom of plate.
IMPORTANT: INCLUDE YEAR, MAKE AND MODEL IN THE CUSTOMER NOTES SECTION SO WE MAY VERIFY THE CORRECT PARTS ARE SENT.
NOTE: It is recommended that you use the hole that allows the traction bars to be most parallel to the ground when your vehicle is fully loaded, weight on tires.
